Doc2GraphFormer

Doc2GraphFormer is a hybrid graph-transformer framework for document understanding that integrates the structured reasoning of Graph Neural Networks with the global context modeling of transformers.

Problem

GraphSAGE-based message passing struggles with long-range dependencies and global context, while token-based transformers lack an explicit structured representation of document elements.

Approach

• Converts documents into graph representations and applies multi-head self-attention for structured parsing
• Jointly optimizes three tasks: Entity Recognition, Subgraph Clustering, and Entity Linking
• Dynamically refines entity relationships, capturing both local and global dependencies

Results

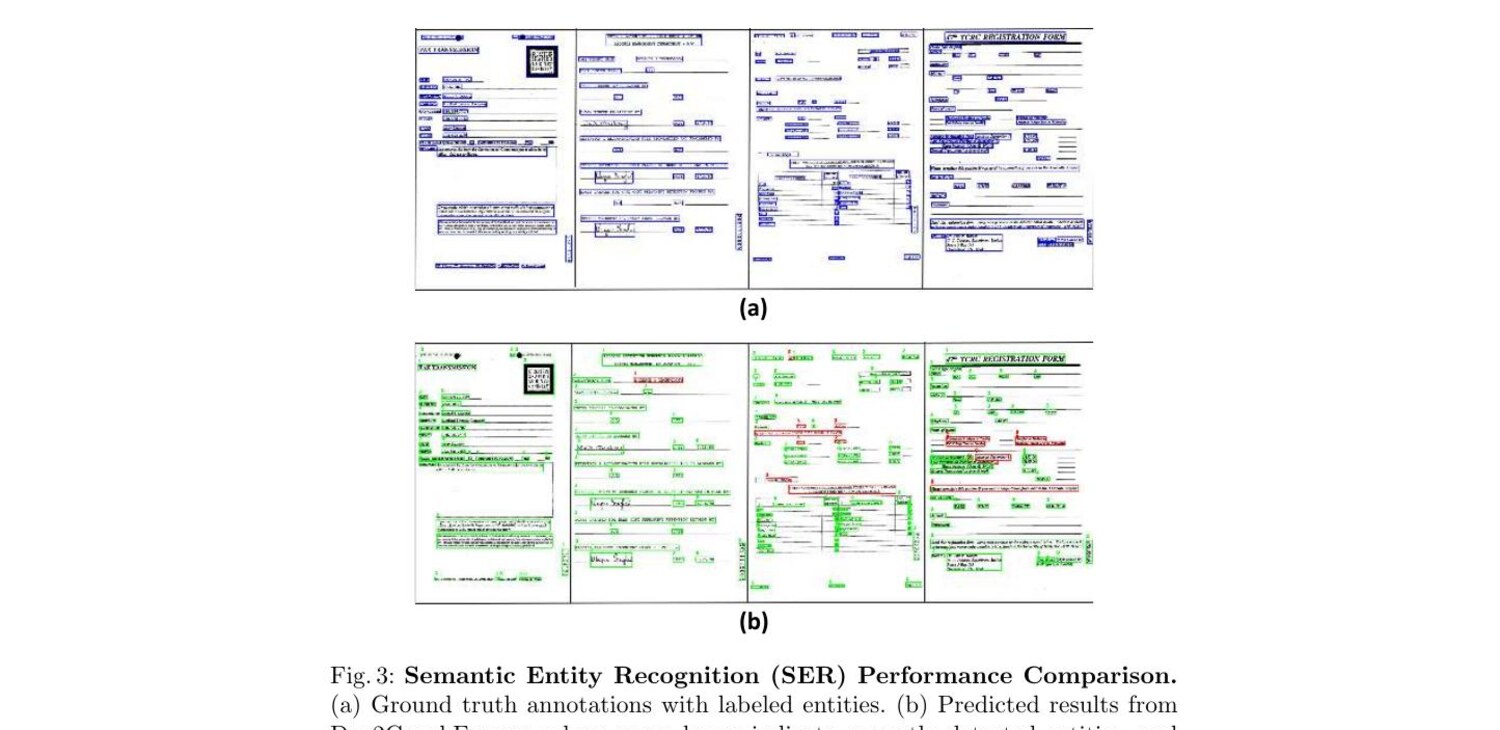

Semantic Entity Recognition (SER) and Relation Extraction (RE) F1 on FUNSD — Doc2GraphFormer leads while using a fraction of the parameters:

{
  "tooltip": { "trigger": "axis" },
  "grid": { "left": "3%", "right": "4%", "bottom": "3%", "containLabel": true },
  "xAxis": { "type": "category", "data": ["BROS", "LayoutLM", "Doc2Graph", "Doc2GraphFormer+GL"] },
  "yAxis": { "type": "value", "name": "SER F1", "max": 1 },
  "series": [
    {
      "type": "bar",
      "data": [
        { "value": 0.812, "itemStyle": { "color": "#b9c4d0" } },
        { "value": 0.79, "itemStyle": { "color": "#b9c4d0" } },
        { "value": 0.823, "itemStyle": { "color": "#b9c4d0" } },
        { "value": 0.862, "itemStyle": { "color": "#4f8ef7" } }
      ],
      "barMaxWidth": 55,
      "itemStyle": { "borderRadius": [4, 4, 0, 0] },
      "label": { "show": true, "position": "top" }
    }
  ]
}

Publication

Mazumder, S., Biswas, S., Pal, A., Das, A., Pal, U., Lladós, J. Doc2GraphFormer: Bridging Structured Graph Learning with Transformer Attention for Efficient Document Understanding. ICDAR 2025.
