Lighting-Robust Instance Segmentation

SAM extended with a Lighting Convolutional Attention module

Lighting-aware Unified Model for Instance Segmentation extends the Segment Anything Model (SAM) with a novel Lighting Convolutional Attention (LCA) module that makes segmentation robust to challenging real-world illumination conditions — harsh shadows, specular highlights, and uneven lighting common in agricultural and industrial settings.

Problem

SAM achieves strong zero-shot segmentation on standard benchmarks, but degrades significantly under difficult lighting. Agricultural robotics and field deployments face highly variable natural illumination that breaks standard instance segmentation pipelines.

Solution: LCA Module

The LCA module is inserted into the SAM image encoder. It:

  1. Estimates a per-channel lighting map from the input feature map
  2. Applies a convolutional attention mechanism to suppress lighting artifacts
  3. Produces lighting-normalized features that feed into SAM’s prompt encoder and mask decoder

Results

mIoU under lighting-variant (V) conditions — the lightweight LCA adapter recovers most of SAM’s lost accuracy and, combined with decoder fine-tuning, beats all baselines:

Model Cityscapes (V) VOC (V) COCO (V)
SAM-0 (baseline) 0.560 0.608 0.652
YOLOv11s 0.238 0.518 0.346
LCA (ours) 0.756 0.682 0.788
LCA+Dec (ours) 0.784 0.728 0.811
{
  "tooltip": { "trigger": "axis" },
  "legend": { "data": ["SAM-0 baseline", "LCA+Dec (ours)"], "top": "2%" },
  "grid": { "left": "3%", "right": "4%", "bottom": "3%", "containLabel": true },
  "xAxis": { "type": "category", "data": ["Cityscapes", "VOC", "COCO"] },
  "yAxis": { "type": "value", "name": "mIoU (lighting-variant)", "max": 1 },
  "series": [
    {
      "name": "SAM-0 baseline",
      "type": "bar",
      "data": [0.56, 0.608, 0.652],
      "itemStyle": { "color": "#e0a96d", "borderRadius": [4, 4, 0, 0] }
    },
    {
      "name": "LCA+Dec (ours)",
      "type": "bar",
      "data": [0.784, 0.728, 0.811],
      "itemStyle": { "color": "#4f8ef7", "borderRadius": [4, 4, 0, 0] }
    }
  ]
}

Qualitative Segmentation

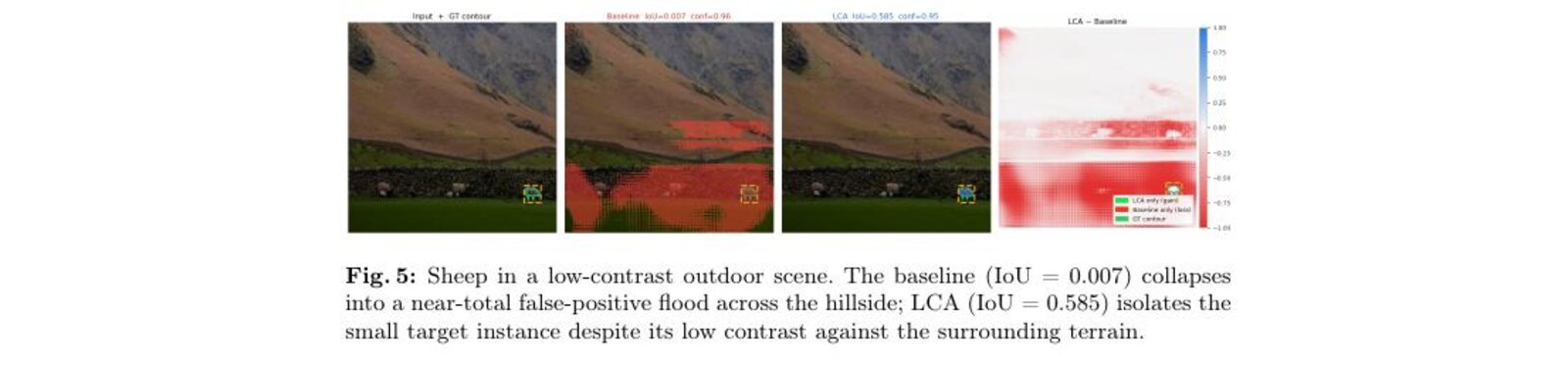

Low-contrast scene: the SAM baseline floods the hillside with false positives (IoU 0.007) while LCA isolates the target instance (IoU 0.585).

Publications

  • Preprint (2026): Lighting-aware Unified Model for Instance Segmentation — Liu, Das et al. (arXiv:2605.20436)

Status

Preprint available. Experiments run on custom agricultural datasets and standard COCO benchmarks.

Work done at SCSLab, Iowa State University.
